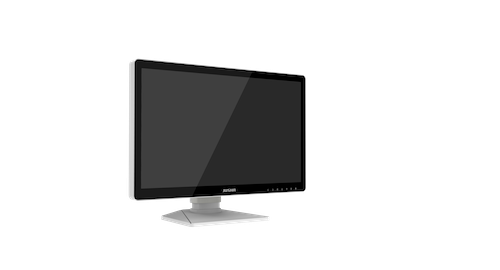

JUSHA E270AG 27″ FHD Surgical Display

A special monitor for endoscopic surgery adopts high-resolution FHD LCD panel, with accurate color reproduction, good color depth, smooth dynamic range, and wider viewing angle. This meets today’s rapidly changing medical display needs, enabling a clear and precise visualization of the surgical images. Waterproof design, antibacterial treatment, good compliance with electromagnetic compatibility regulations, a variety of video input and output interfaces. All of these make this product fully meeting the requirements of various applications in operating rooms.

JUSHA E270AG 27″ FHD Surgical Display

In stock

Description

Introduction

1. Accurate color reproduction

This JUSHA surgical monitor product line applies 36 bit LUT technology, which can accurately restore the color of human body, so that surgeons can make more accurate judgments.



2. High color depth

This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness, and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.



3. Smooth dynamic motion

The response time of this JUSHA surgical monitor is less than 14ms, so that it can smoothly present high-resolution surgical videos, and clearly display the bleeding status and other delicate operations during the operation, without smear and jitters.



4. Meet the operating room purification and anti-interference requirements

This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The metal enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the surgical display.



5. Various interfaces

This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world’s major camera systems.

Specification
Model No: E270AG
ModelE270AG
TypeIPS
BacklightLED
Diagonal size27” (686 mm)
Display area597.888 × 336.312 mm
Resolution1920 × 1080
Aspect ratio16:9
Pixel Pitch0.3114 × 0.3114 mm
Color Depth10 bit
LUT Depth12 bit
Viewing angles178°
Maximum brightness (typical)1000 cd/m²
Maximum calibrated brightness800 cd/m²
Default brightness500 cd/m²
Minimum brightness200 cd/m²
PresetsGAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6,DICOM
Contrast ratio1000:1
Response time(Ton+Toff)/214 ms
FeaturesPIP
Video inputDVI × 1, VGA × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1, SDI × 1
Video outputDVI × 1, CVBS × 1, SDI ×1
Other I/ORS232
Power input”DC: 24V, 6.25A Power AC: 100~240V, 50/60Hz”
Typical power70W
Maximum power84 W
Power saving< 0.5 W
Backlight stabilizerYes
Other sensorsNo
Protective glassYes
Housing colorWhite
(W x H x D)Dimensions with stand(W x H x D)647.4 × (481-581) × 237.5 mm
(W x H x D)Dimensions without stand(W x H x D)647.4 × 398.2 × 65.4 mm
Net weight with stand16Kg
Net weight without stand10Kg
VESA100 × 100 mm
CerticationsCCC, CE

Brand

Jusha Medical displays
