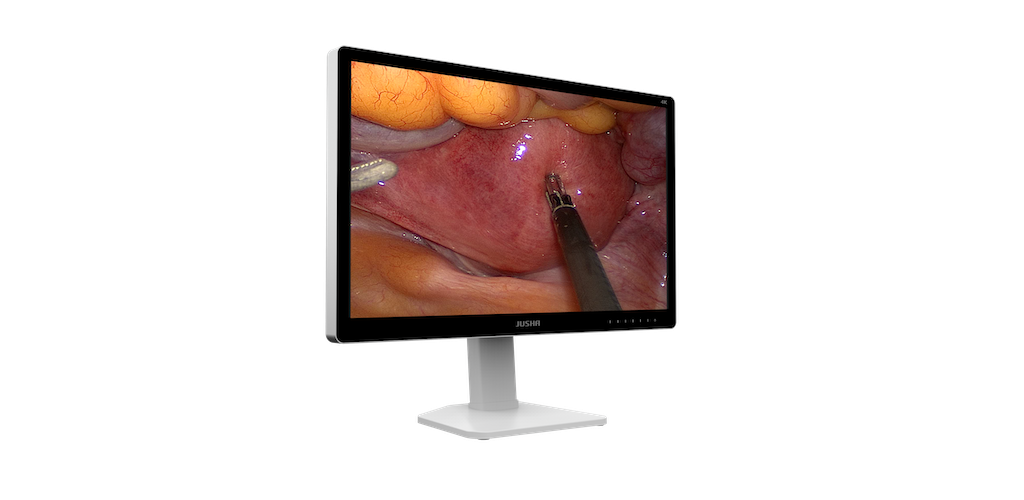

JUSHA E320AG 4K 32″ Surgical Display

A special monitor for endoscopic surgery adopts 4K ultra-high-resolution LCD panel, with accurate color reproduction, good color depth, smooth dynamic range, and wider viewing angle. This meets today’s rapidly changing medical display needs, enabling a clear and precise visualization of the surgical images. Waterproof design, antibacterial treatment, good compliance with electromagnetic compatibility regulations, a variety of video input and output interfaces. All of these make this product fully meeting the requirements of various applications in operating rooms.

JUSHA E320AG 4K 32″ Surgical Display

In stock

Description

Introduction

1. Accurate color reproduction

All professional monitors in JUSHA surgical monitor product line applies 42-bit LUT technology, which can linearly represent more than 4.398 trillion colors, to accurately restore the color of human, so that surgeons can make more accurate judgments.



2. High color depth

This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness and high contrast, so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.



3.Smooth dynamic motion

The response time of this JUSHA surgical monitor is less than 9ms, so that I can smoothly present surgical videos from standard resolution to ultra-high resolution, and clearly display the bleeding status and other delicate operations during the operation, without smear and jitters.



4. Meet the operating room purification and anti-interference requirements

This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The fully enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high frequency electrosurgery on the monitor and ensure the stability of the display.



5. Various interfaces

This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world’s major camera systems.

Specification
Model No: E320AG
ModelE320AG
TypeIPS
BacklightLED
Diagonal size32” (812.8 mm)
Display area708.48 × 398.52 mm
Resolution3840 × 2160
Aspect ratio16:9
Pixel Pitch0.1845 × 0.1845 mm
Color Depth10 bit
LUT Depth14 bit
Viewing angles178°
Maximum brightness (typical)850 cd/m²
Maximum calibrated brightness650 cd/m²
Default brightness420 cd/m²
Minimum brightness200 cd/m²
PresetsGAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6,DICOM
Contrast ratio1350:1
Response time(Ton+Toff)/29 ms
FeaturesPIP、Multi-window(4)
Video inputDVI × 1, DP1.2 × 1, HDMI2.0 × 1, HDMI1.4 × 1, 3G-SDI × 3, 12G-SDI × 1
Video outputDVI × 1, 3G-SDI × 1, 12G-SDI × 1
Other I/ODC 5V 1A (with plug5.5*2.5 mm) × 2, RJ45 × 1, USB-B × 1
Power input”DC: 24V, 6.25A Power AC: 100~240V, 50/60Hz”
Typical power90 W
Maximum power150 W
Power saving< 0.5 W
Backlight stabilizerYes
Other sensorsNo
Protective glassYes
Housing colorWhite
(W x H x D)Dimensions with stand(W x H x D)758.7 × (571-631) × 260.9 mm
(W x H x D)Dimensions without stand(W x H x D)758.7 × 468.2 × 72.68 mm
Net weight with stand16.5 Kg
Net weight without stand12.2 Kg
VESA100 × 100 mm, 100 × 200 mm
CerticationsCCC, CE

Brand

Jusha Medical displays
