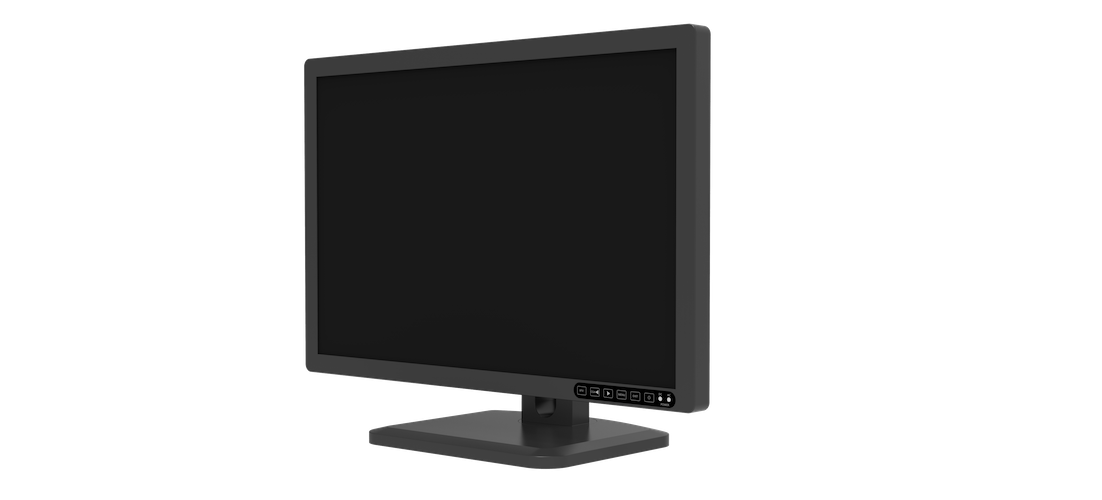

JUSHA R241M 2MP Clinical Review Display
0 out of 5
2MP/Color/Clinical Review
The R241M is a 24-inch professional monitor with LED backlight. A product specially designed to meet the precise performance standards of observation, diagnosis, interventional nuclear medicine, and other medical applications, with built-in DICOM/GAMMA standard LUT. It is suitable for DR, digital gastrointestinal machine, DSA and other equipment for observation or diagnosis.

JUSHA R241M 2MP Clinical Review Display
In stock
SKU: JUSHA R241M
Categories: Clinical Displays, Medical Display Solutions
Tags: 2MP, Clinical Review
- Description
- Brand
- Reviews (0)
Description
Introduction
1. High resolution
With a resolution of up to 2 million pixels, it can fully display the details of medical images and meet the needs of medical institutions for accurate diagnosis.
2. Wide viewing angle
Viewed from the edge of the display, the grayscale shift is extremely small due to the wide viewing angle.
3. Compliant with DICOM/GAMMA standard
To ensure that the display always presents the most accurate image effect, JUSHA will carefully measure and set each gray scale during the production process of the display, so as to ensure that the produced R241M display complies with the DICOM/GAMMA standard.
Specification
Model No: R241M
ModelR241M
Typea-Si TFT
BacklightLED
Diagonal size24″
Display area518.4(H) × 324(V)mm
Resolution1920*1200
Aspect ratio16:10
Pixel Pitch0.27 x 0.27mm
Color Depth24bit
LUT Depth30bit
Viewing angles178°
Maximum brightness (typical)600 cd/m²
Maximum calibrated brightness450 cd/m²
Default brightness300 cd/m²
Minimum brightness200 cd/m²
PresetsDICOM ,GAMMA2.2 ,CT/MRI,USER
Contrast ratio1000:1
Response time(Ton+Toff)/214 ms
Features”DVI-D x 1 VGA x 1″
Power inputAC: 100 – 240 V: 50 / 60 Hz
Typical power25 W
Maximum power25 W
Power saving< 0.5 W
Housing colorBlack
(W x H x D)Dimensions with stand(W x H x D)564.4mm*443mm*198mm
(W x H x D)Dimensions without stand(W x H x D)564.4mm*370mm*62.2mm
Net weight with stand9.3kg
Net weight without stand6.5 kg
CerticationsCE, CCC, Energy saving
